Premium Line New Innovative 19” Fiber Optic Patch Panel
- August 18, 2023
19" 1U Fiber Optic Patch Panel: Customizable and Convenient
A cutting-edge fiber optic patch panel has emerged, boasting a unique modular design and a comprehensive range of accessories, offering unparalleled flexibility for users. This system allows individuals to assemble the patch panel precisely as per their requirements. With four adaptable slots, users have the freedom to choose between SC, ST, LC, FC-D-flange or blank adapter panels. This versatility empowers them to create a configuration that best suits their needs. The patch panel supports up to 24 ports of SC simplex or LC duplex adaptors, enabling a remarkable total of 48 fiber terminations. This abundance of options ensures efficient connectivity for a variety of applications.
Both unloaded and fully loaded adapter panels are available, catering to diverse installation preferences.
Equipped with a splice cassette housing 24 cores and efficient cable routing, this patch panel takes organization and management to new heights. For those requiring even greater capacity, a stackable splice cassette (PN673000001) accommodating 48 cores can be ordered additionally.
Designed to fit standard 19″ racks with a 1U height, this patch panel effortlessly integrates into existing setups, minimizing the need for extensive modifications. The smooth sliding tray, accompanied by a self-lock function, guarantees easy installation and maintenance, further streamlining operations for users.
A quick overview of the panel in this video:
The old version of the panel is still available for sale (while stock last!), but will be phased out and replaced with the updated version.
19” Fiber Optic Patch Panel - NEW
FEATURES:
- Unique modular design and full range of accessories allow to assemble a patch panel as needed
- Four adapter slots can be covered by SC, ST, LC, FC-D-flange or blank adapter panels; Support up to 24 ports of SC simplex or LC duplex adaptors to provide up to 48 fibers terminations. The adapter panels are available for unloaded and fully loaded (see below)
- Equipped with splice cassette of 24 cores and cable routings. For 48 cores, stackable splice cassette (PN673000001) is available for ordering additionally.
- Fits to standard 19” racks; 1U height
- Smooth sliding tray with self lock function, easy to install and maintain
- Material/thickness of body and adapter panels: cold rolled steel/1.4 mm
- Material of splice cassette and cable routing: ABS
- Adapter meets TIA/EIA 568.3-D
- RoHS compliant
APPLICATIONS:
- Telecommunications
- Local Area Network
- FTTH deployments
- CATV
- Provide termination, protection, connection and management of fiber optic cable
ACCESSORIES:
| Splice cassette
(for 24 fibers) |
1pc | Main body rivet | 2pcs |
| Cable routing spool | 2pcs | Adapter panel rivet | 8pcs |
| Fiber protection sleeve | 24pcs | Adapter set screw | 50pcs |
| Cable tie | 12pcs | / | / |

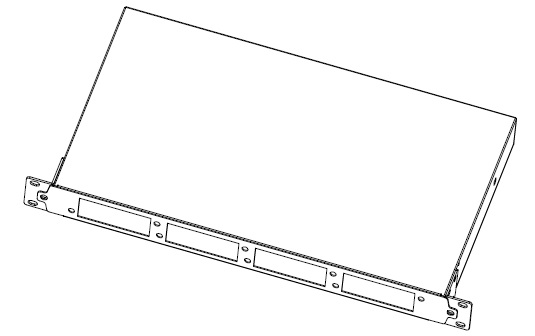

DRAWING:
ORDERING INFORMATION:
| Part No. | 671100002 |
| Description | 1U 19” fiber optic patch panel, main body, black |
| Packing | 1pc/box, 5pcs/carton |
| Carton dimension: | 53 x 32 x 28.5cm, Weight: N.W. 15.5 kgs, G.W. 17.0 kgs |
Visio shapes and an online calculator are available for this solution. These are all free services.
For purposes of illustration of FO panel 48 port LC Duplex SM/APC and 24 port LC Duplex SM/UPC + 24 port LC Duplex MM/UPC in 1U, more stencils are here.

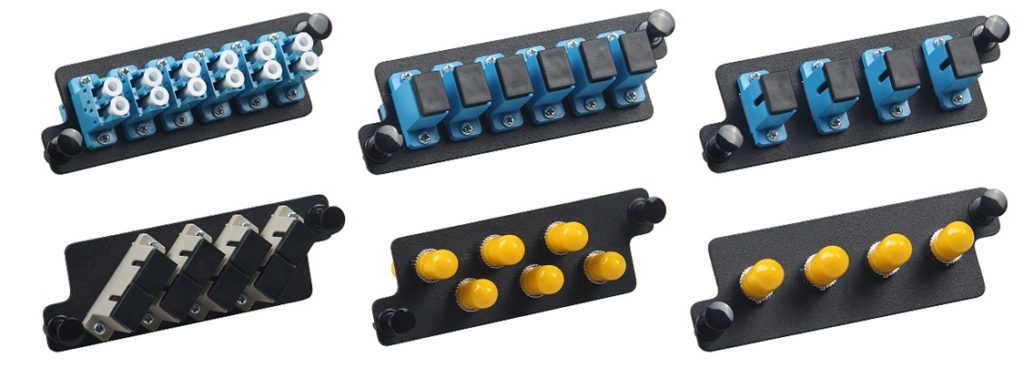

- ADAPTER PANELS:
-
For further details, feel free to contact us at sales@vstech.com.sg
